Electronics Assembly Systems – Auto Setting Feeder
Auto Setting Feeder
Realize skillless components supply

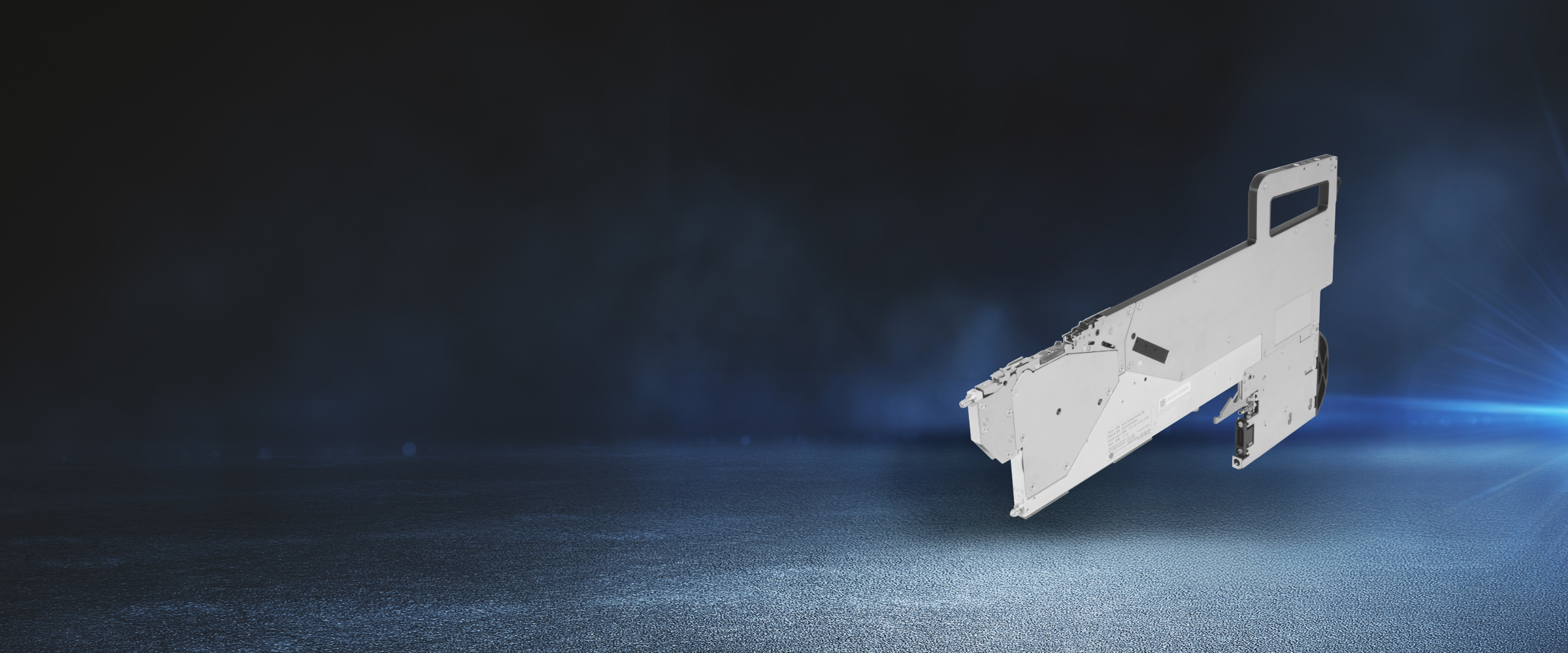

Auto Setting Feeder
Main Features
- Automates the process of setting new tape components, reduces approximately 60 seconds including pre-processing.（Current feeder ITF: approximately 90 seconds → Auto Setting Feeder ASF: approximately 30 seconds）

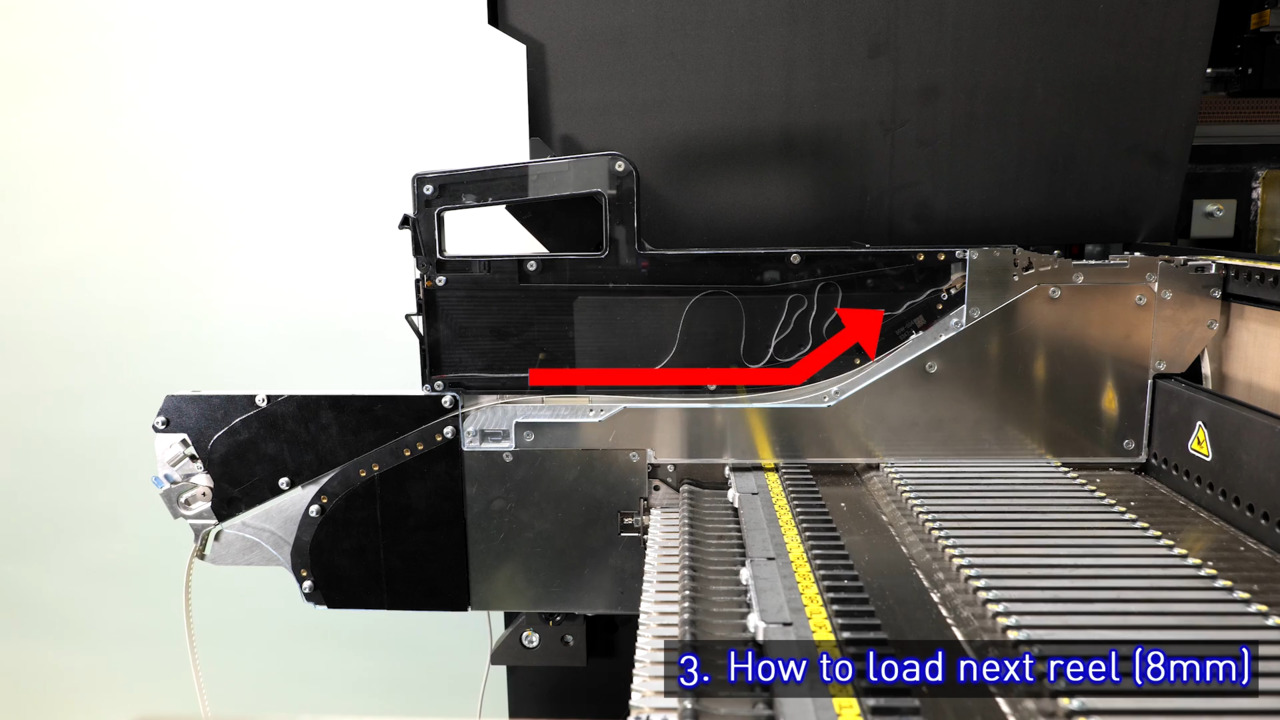

- Realized automatic loading of next componentss by optional Loading Unit （Eliminates splicing work, and saves its work time）
- Dramatically eliminates the short time breakdown caused by tape supply components
- Supports 8~104 mm width tape components (Paper, Emboss)

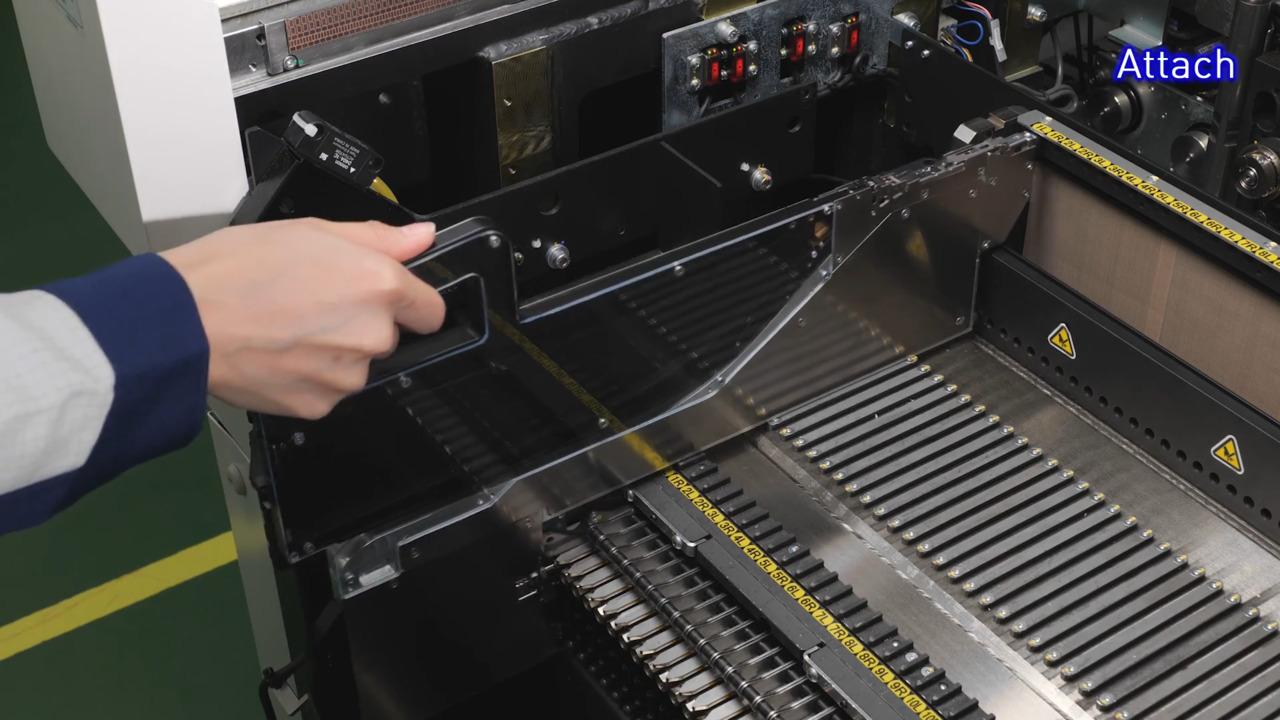

- New ASF + its cart can be attached to the current Panasonic equipment (NPM series) = Retrofit policy
New feeder that greatly reduces working time by automating components supply work in the mounting process
Auto Setting Feeder
Strengths and Features

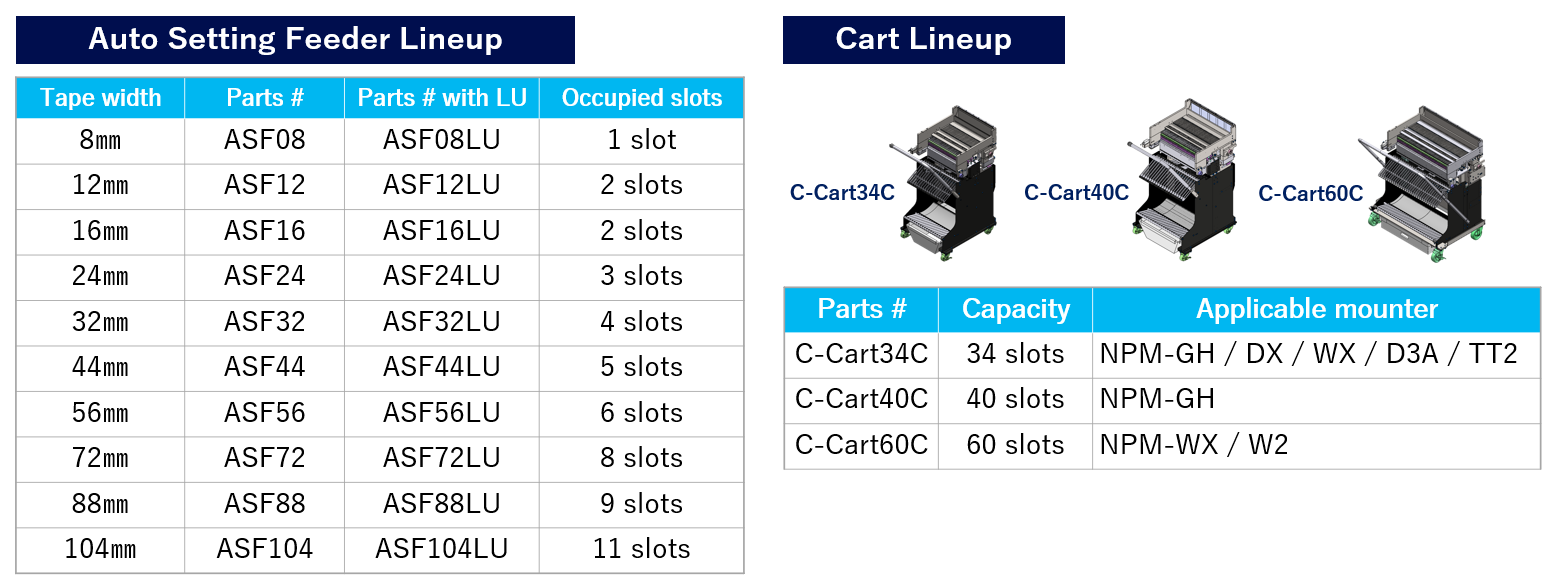

Supports 8~104 mm width tape parts (Paper, Emboss)

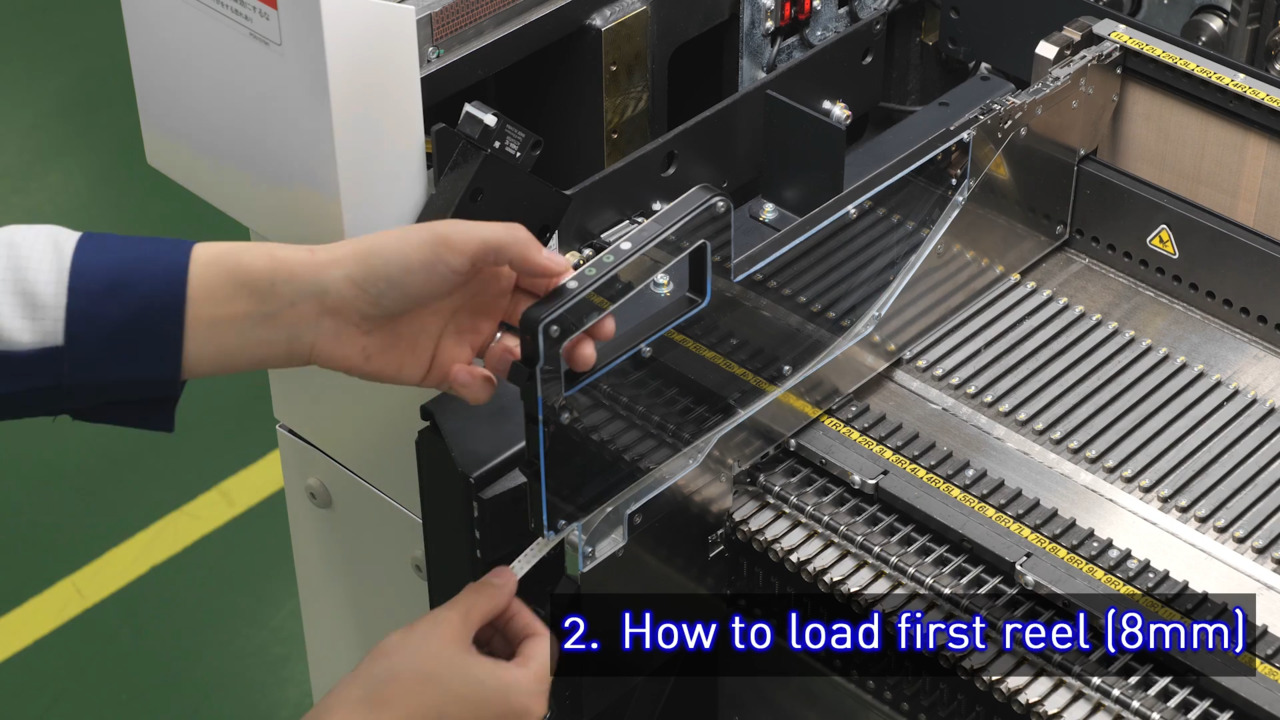

Skillless auto setting and auto loading
Pre-processing work is necessary to use the Auto Setting Feeder. To simplify the pre-processing work, we prepare specialized Jig.

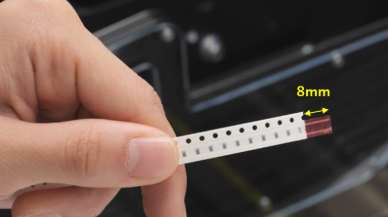

Pre-processing (8mm protrusion)
Cover tape must protrude 8mm beyond the carrier tape tip.

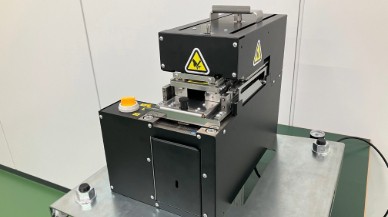

Automatic Half-Cut Jig
Just set the tape tip and twist the switch to complete the pre-processing.

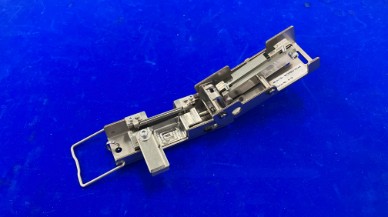

Manual Half-Cut Jig
Just set the tape tip in Jig and push it to remove the carrier tape.

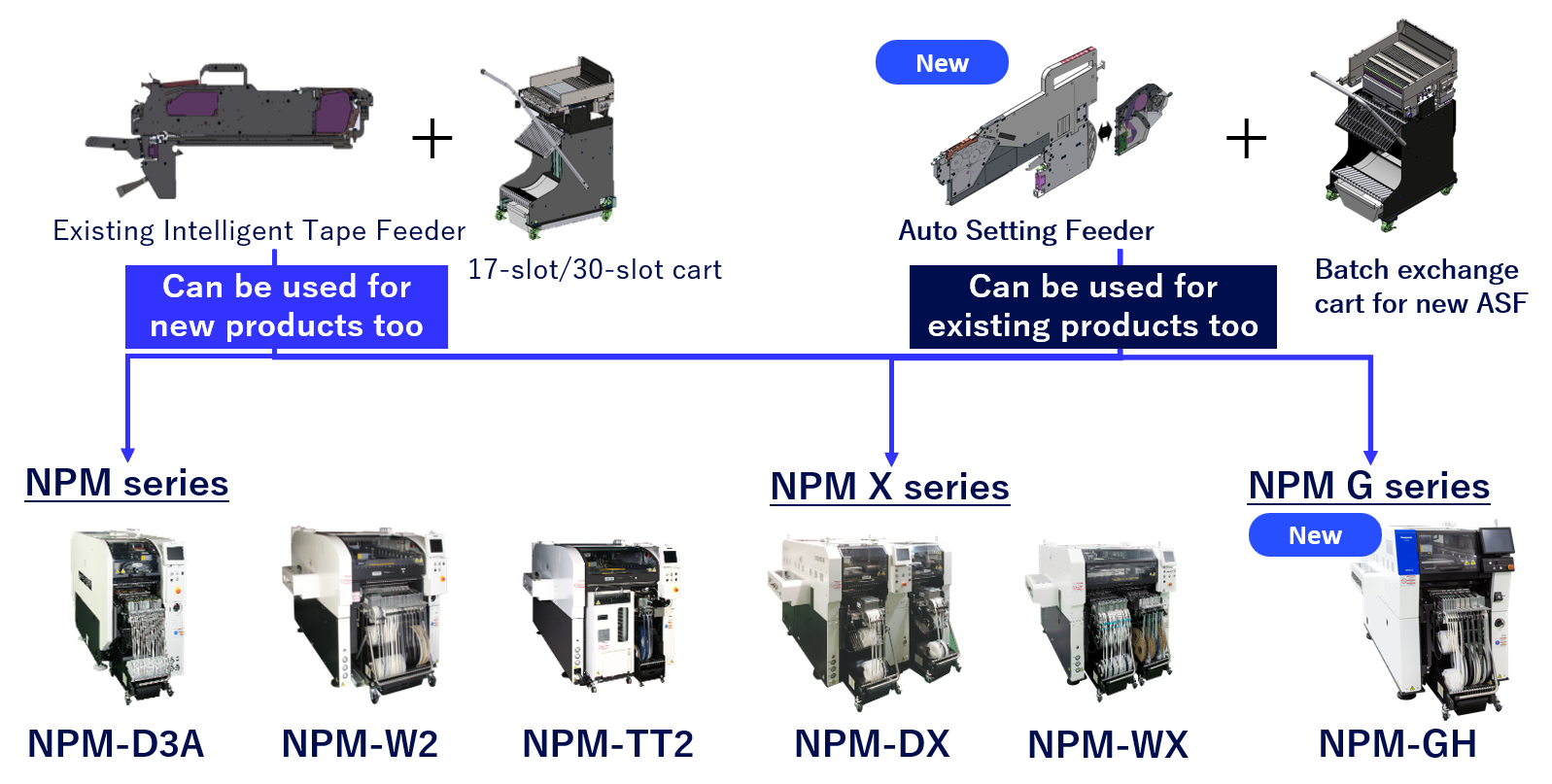

Retrofit concept that realize "Automation" of existing Panasonic facilities without mechanical modifications
