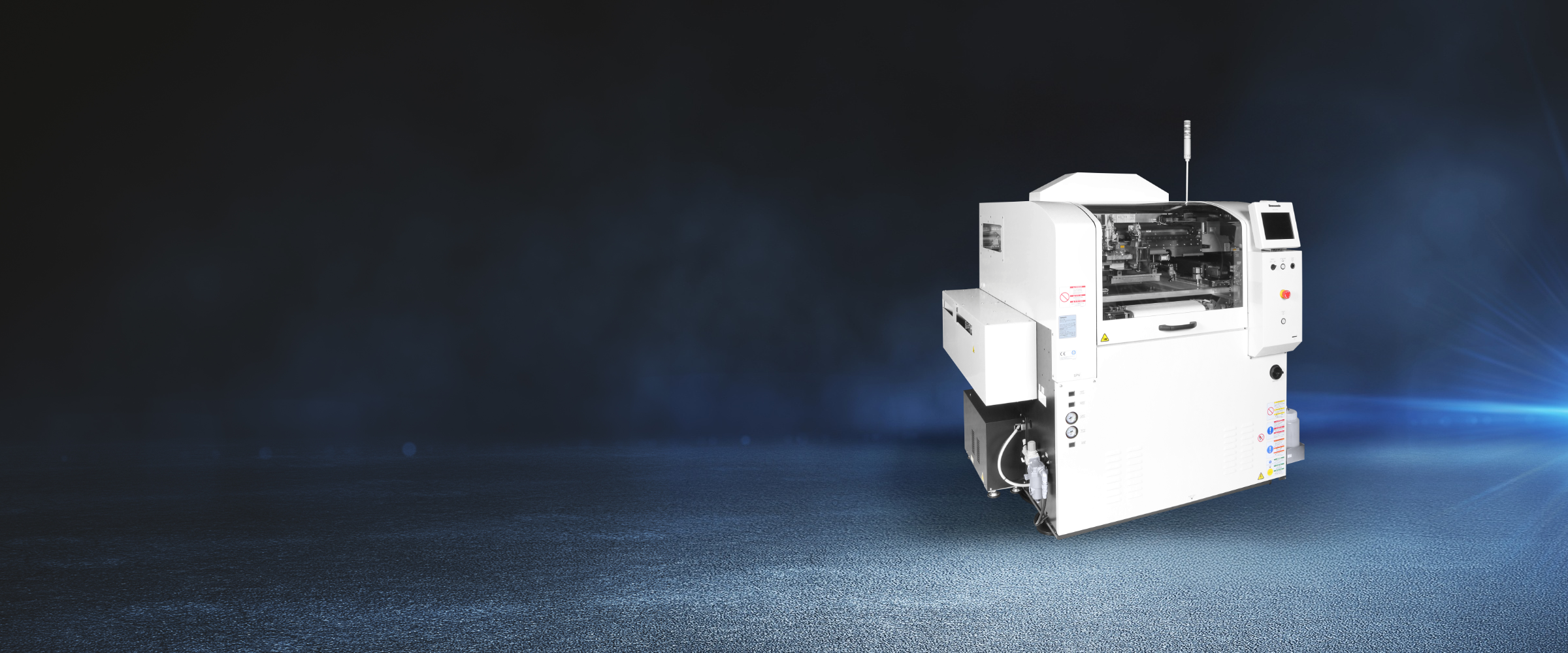

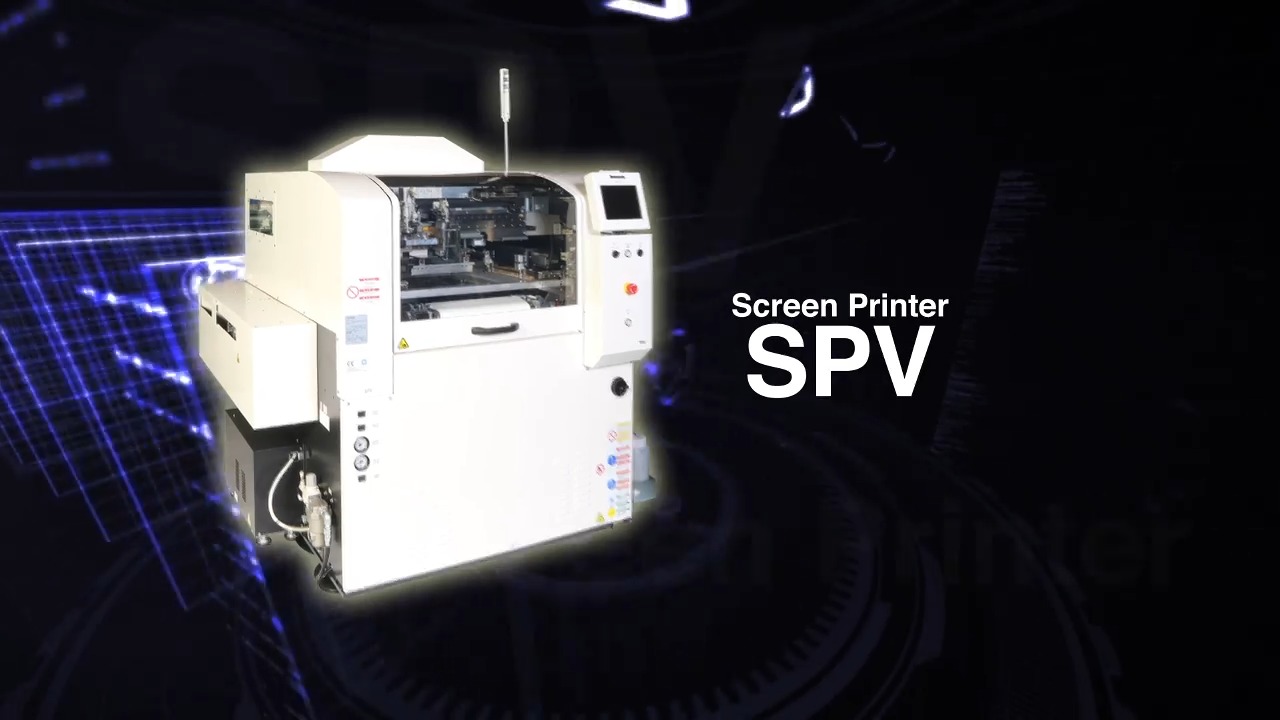

Screen Printer SPV
SPV
Main Features
- Printing cycle time of 10 seconds including transport, recognition, and cleaning each time
- High print quality

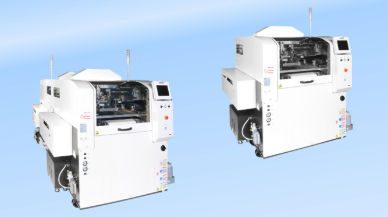

- Printing process matched to the production configuration and adaptable to various layouts
Printer with built-in PCB sorting function to realize ultra-high speed tact time
Ultra high-speed tact: This screen-printer achieves a cycle time of 10 seconds. Built-in PCB sorting function enables the machine to accommodate various line layouts of customers.
Strengths and Features
Problems this product contributes to
High productivity
High speed printing (10 sec/sheet) and stable printing
Cycle time of 10 seconds per sheet is realized, achieving both high-speed printing and stable quality with each cleaning.
Automatic solder supply (option)
Two solder pots allow continuous operation for 4 hours.
High printing quality
Mask adsorption plate separation
Even with a mask with loose tension, the mask is adhered to the PCB by adsorbing the mask. Also, by removing the mask from the stencil while it is still adsorbed, the mask is removed from the stencil uniformly and stable quality can be maintained.
Hybrid PCB adsorption
Air flow is generated from the top to the bottom of the mask to improve solder release.
M2M line solution (APC-FB) (option)
Analyzes the measured data of solder inspection and corrects the print position (X, Y, θ).
Support for Various layouts
Built-in PCB sorting function
PCB sorting is possible without the traverser/sorting conveyor required for dual printing press installations.
Main Specifications
| SPV | |
|---|---|
| PCB dimensions (mm) | L 50 mm × W 50 mm ~ L 350 mm × W 300 mm (2 in 1 Max. Dimensions: L 350 mm x W 165 mm) |
| PCB exchange | 10.0 s Including transfer, positioning, recognition, each-time cleaning. Printing & cleaning conditions : Our recommended conditions ( PCB dimensions L 250 mm × W 165 mm )※Except 2 in 1 Spec |
| Repeatability | 2 Cpk ± 5.0 μm 6σ The repeatability of same PCB Equal to ± 5.0 μm ± 3σ ( or ±2.5 μm ±1.5 σ ) |
| Screen frame dimensions | L 736 mm × W 736 mm 、L 650 mm × W 550 mm 、L 550 mm × W 650 mm L 750 mm × W 750 mm 、L 584 mm × W 584 mm |
