Manipulators
TS / TM / TL Series / LA-1800
Overview
TS Series External type Through-Arm type
Key functions
-
Space saving & high payload
TM Series Separate type External type Through-Arm type
Key functions
-
Torch type can be selected to fit your application
-
Standard model
TL Series External type
Key function
-
Space saving & high payload
Medium type multi-purpose robot LA-1800
Key function
-
Payload: 26 kg
-
Maximum motion speed: 370°/s (average of all axes)
-
Maximum reach: 1,801 mm
-
All the above are among the best in the industry
For the medium type material handling robot with the payload capacity of 15 kg or more and less than 30 kg (As of February 2019, surveyed by Panasonic)
Separate Type (TM Series)
External flexible conduit
The wire has a gentle curve between feeder and torch body ensuring stable wire feed.

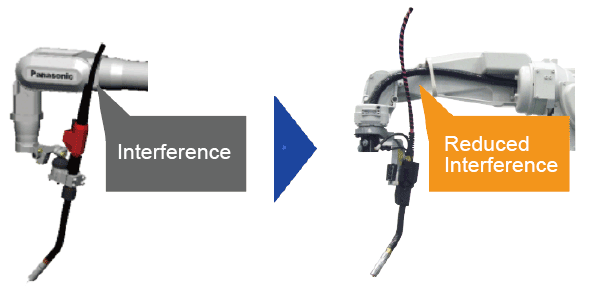

Through-arm power cable
Power cable is built into the manipulator to reduce interference with the surroundings.
Medium Type Multi-purpose Robot LA-1800
Powerful and high speed
This robot boasts of an industry-leading payload of 26 kg and an operating speed of 370°/s
* For the medium type material handling robot with the payload capacity of 15 kg or more and less than 30 kg (As of February 2019, surveyed by Panasonic)
A single robot can perform material handling and welding operations
Welding can be performed by fixing the torch and holding the workpiece with the manipulator LA-1800.The ability to maintain downward welding results in high-quality penetration and bead appearance.
Key Specifications and Options

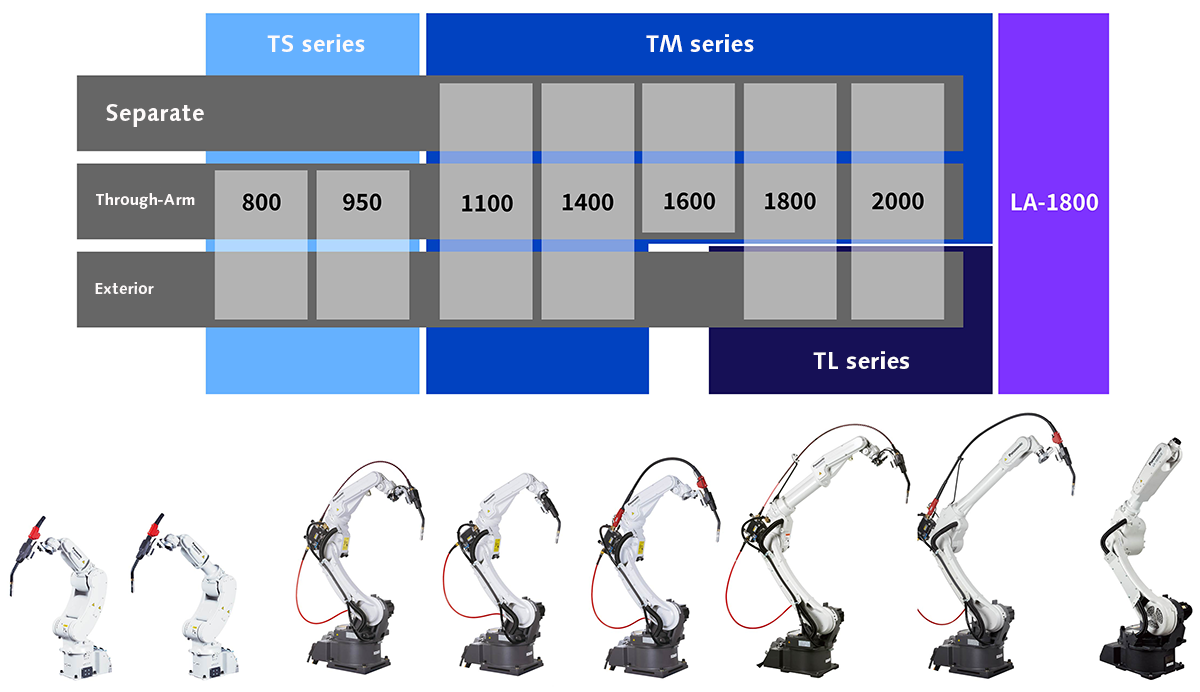

■Manipulator lineup (as of February 2021)
|
|
|
|
|||||||
|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
| Separate |
|
|
|
|
|
|
|
|
|
| Through-arm |
|
|
|
|
|
|
|
|
|
| External |
|
|
|
|
|
|
|
|
|
| Payload |
|
|
|
|
|
|
|||
WG III / Rated welding output: 350 A, Duty cycle: 80% (Pulse 60%)
WGH III / Rated welding output: 450 A, Duty cycle: 100% (Pulse 100%)* Please contact us for products that comply with RIA, C-UL, UL, CE and CCC standards.
Specifications

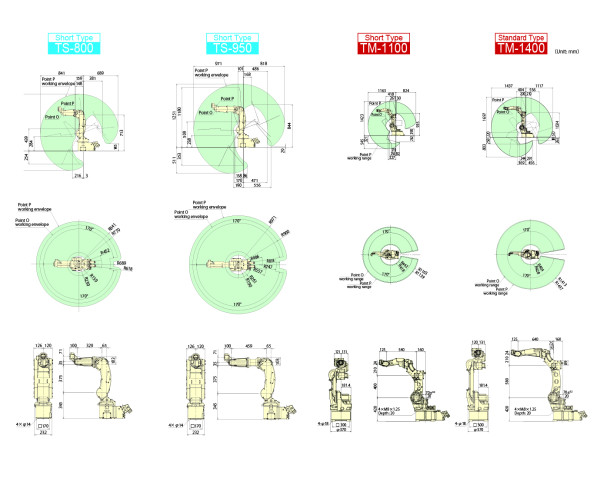

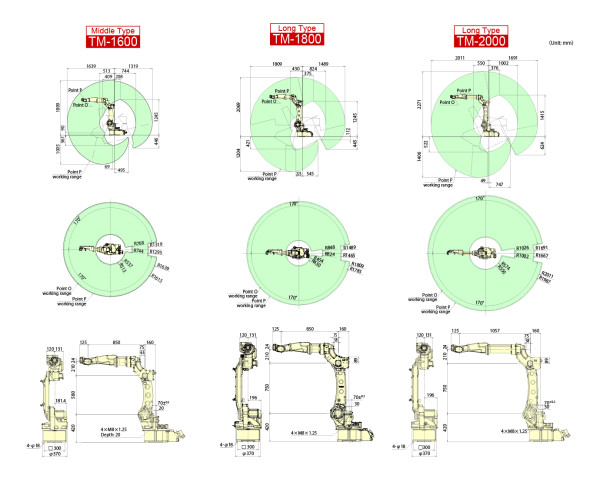

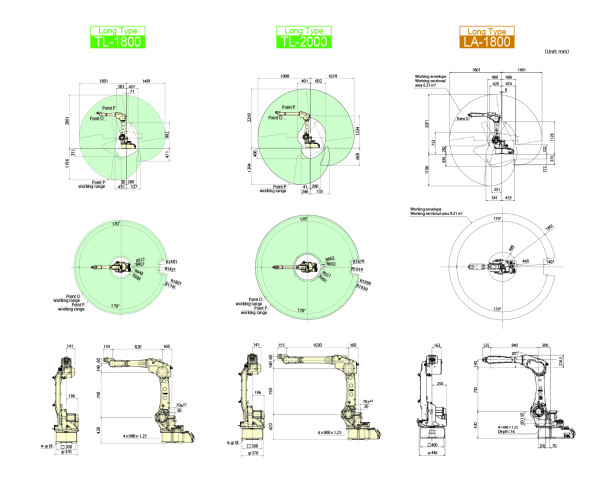

Working envelope and dimensions
* For the working envelope of point O, please consult with our sales office.
Manipulator general specifications
| Name | TS-800 | TS-950 | ||
|---|---|---|---|---|
| Type | Short type | Short type | ||
| Structure | 6 axis articulated | |||
| Payload | 8 kg | |||
| Working range | Maximum reach | 841 mm | 971 mm | |
| Minimum reach | 159 mm | 190 mm | ||
| Frong-back working range | 682 mm | 781 mm | ||
| Motion speed | Arm | Swivel（RT axis） | 326°/s | |
| Upper arm（UA axis） | 326°/s | |||
| Front arm（FA axis） | 510°/s | |||
| Wrist | Rotation （RW axis） | 518°/s | ||
| Bending（BW axis） | 518°/s | |||
| Twist（TW axis） | 1040°/s | |||
| Position repeatability accuracy | Within ±0.05 mm | |||
| Motor | Total power | 2,100 W | ||
| Brakes | All axes | |||
| Mounting | Floor, ceiling*1and wall mounted*2 | |||
| Unit weight | Approx. 55 kg | Approx. 56 kg | ||
*1: Ceiling-mounted type is a factory-installed option.
*2: Requires setup by service personnel. The working range of swivel (RT axis) will be limited.
| Name | TM-1100 | TM-1400 | TM-1600 | TM-1800 | TM-2000 | TL-1800 | TL-2000 | ||
|---|---|---|---|---|---|---|---|---|---|
| Type | Short type | Standard type | Middle type | Long type | Long type | Long type | Long type | ||
| Structure | 6 axis articulated | ||||||||
| Payload | 6 kg | 4 kg | 6 kg | 8 kg | 6 kg | ||||
| Working range | Maximum reach | 1 163 mm | 1 437 mm | 1 639 mm | 1 809 mm | 2 011 mm | 1 801 mm | 1 999 mm | |
| Minimum reach | 418 mm | 404 mm | 513 mm | 430 mm | 550 mm | 383 mm | 491 mm | ||
|
Frong-back working range |
745 mm | 1 033 mm | 1 126 mm | 1 379 mm | 1 461 mm | 1 418 mm | 1 508 mm | ||
| Motion speed | Arm | Swevel （RT axis） |
225°/s | 210°/s | 195°/s | 195°/s | |||
| Upper arm （UA axis） |
225°/s | 210°/s | 197°/s | 197°/s | |||||
| Front arm （FAaxis） |
225°/s | 215°/s | 205°/s | 205°/s | |||||
| Wrist | Rotation （RW axis） |
425°/s | 425°/s | 425°/s | 385°/s | ||||
| Bending （BW axis） |
425°/s | 425°/s | 425°/s | 375°/s | |||||
| Twist （TW axis） |
629°/s | 629°/s | 629°/s | 624°/s | |||||
| Position repeatability accuracy | Within ±0.08 mm | Within ±0.10 mm | Within ±0.08 mm | Within ±0.15 mm | |||||
| Motor | Total power | 3 400 W | 4 700 W | 5 050 W | |||||
| Brakes | All axis | ||||||||
| Mounting | Floor, ceiling（*） | ||||||||
| Unit weight | Approx. 156 kg | Approx. 170 kg | Approx. 180 kg | Approx. 215 kg | Approx. 217 kg | Approx. 215 kg | Approx. 216 kg | ||
* Ceiling-mounted type is a factory-installed option.
| Name | LA-1800 | ||
|---|---|---|---|
| Type | Medium multi-purpose type | ||
| Structure | 6 axis articulated | ||
| Payload | 26 kg | ||
| Working range | Maximum reach | 1 801 mm | |
| Minimum rach | 489 mm | ||
|
Frong-back working range |
1 312 mm | ||
| Motion speed | Arm | Swevel（RT axis） | 201°/s |
| Upper arm（UA axis） | 199°/s | ||
| Front arm（FA axis） | 218°/s | ||
| Wrist | Rotation（RW axis） | 434°/s | |
| Bending（BW axis） | 450°/s | ||
| Twist（TW axis） | 720°/s | ||
| Position repeatability accuracy | Within ±0.07 mm | ||
| Motor | Total power | 6 600 Ｗ | |
| Brakes | All axes | ||
| Mounting | Floor and ceiling* | ||
| Unit weight | Approx. 320 kg | ||
* Ceiling-mounted type is a factory-installed option.
