Full Digital Air Plasma Cutting Machine

PF3 series

Overview

image alt

PF3 Series（YP-035PF3 / YP-060PF3 / YP-080PF3）

Key functions

  • Full digital control achieves high-quality cutting

  • Longer life of consumable parts

  • Air plasma gouging is also possible

  • Capable of high-quality welding in combination with robots

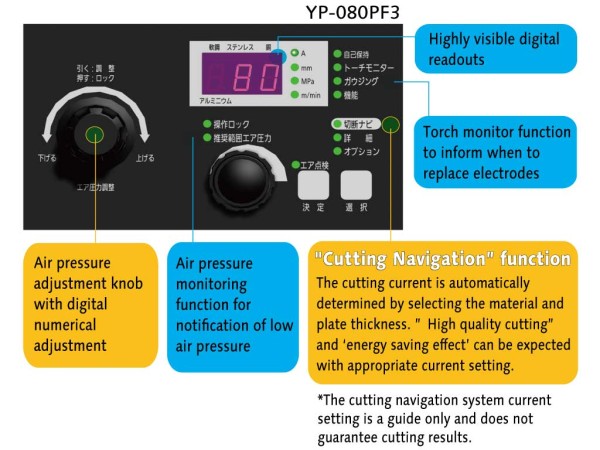

  • Simple and easy-to-use operation panel

Issues

Functionality

By focusing the arc, even higher precision cutting is possible. This series reduces the loss of base materials due to cutting and at the same time achieves a uniform cut surface.

Cutting performance

Equipped with Cutting Navigation as standard. The capability to easily set the appropriate current allows any user to perform high-quality cutting.

Automation

Can be used as a cutting power source for various robots (* 080PF3 only). The high-precision movement of robots will further improve cutting quality.
​​​​​​

Strengths and Features

Full digital control achieves high-quality cutting

Full digital control achieves high-quality cutting

The PF3 series is an air plasma cutting machine that operates with an external compressor. With full digital control, the cutting surface is finer and more uniform than that obtained by conventional models, and the cutting quality has been improved.

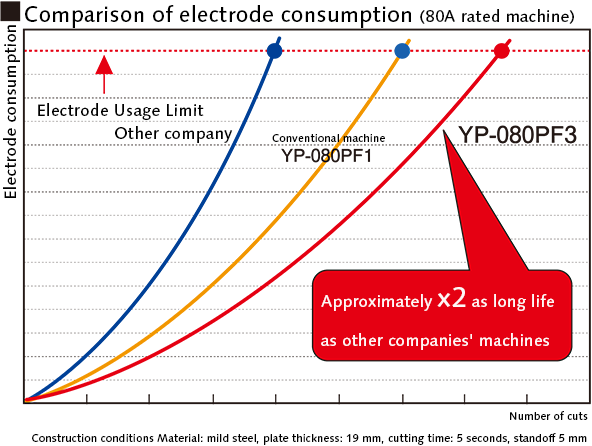

comparison of eledtrode consumption

Longer life of consumable parts achieved by full digital cutting waveform control

Based on the comparison of the amount of electrodes consumed by 080PF3 with that of conventional models, you can use it at lower operating costs.

Also capable of cutting painted steel plates image

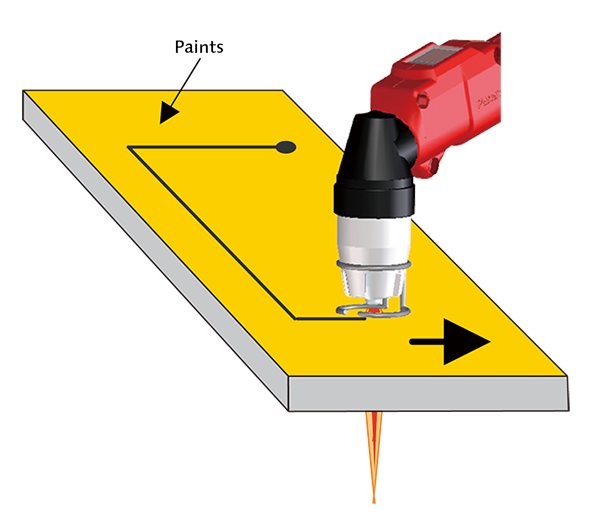

Also capable of cutting painted steel plates

Cutting work is possible without removing paint. No preparation is required, making the overall work more efficient.

* When the paint evaporates, toxic gases are generated in addition to ordinary fumes. Ensure to take ventilation measures and wear a respirator.

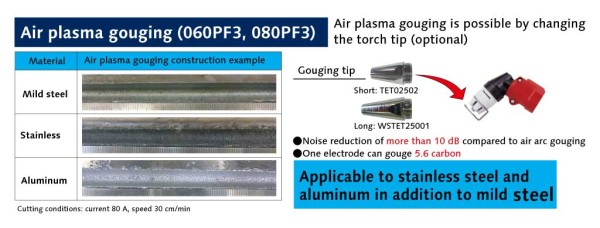

Air plasma gouging is also possible with 060PF3 and 080PF3 image
