Thyristor CO2/MAG Welding Machine
CL4 Series
Overview
CL4 Series (YD-500CL4/YD-600CL4)
Catalog coming soon
* In addition to this product (welding power source), a wire feeder, remote control unit, torch, and gas regulator are required for welding.
Key functions
-
Improved mobility with fewer cables
-
Improved ease of maintenance
-

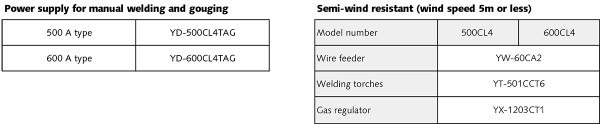

A model capable of both gouging and manual welding is also available
Issues
Durability
A robust sheet metal structure has been adopted. These models possess superior durability and can be used for a long time.
Ease of handling

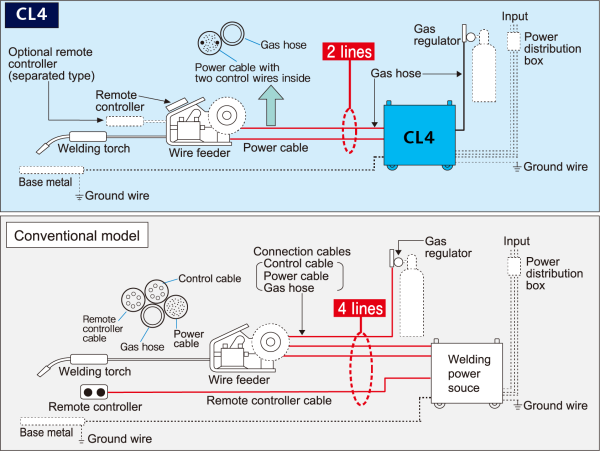

Our proprietary control technology eliminates both the control cable and remote control cable. Grounding can be simplified and the wire feeder can be easily handled.
Strengths and Features

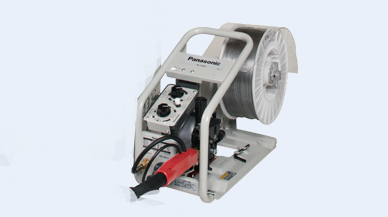

The remote control unit was integrated into the wire feeder

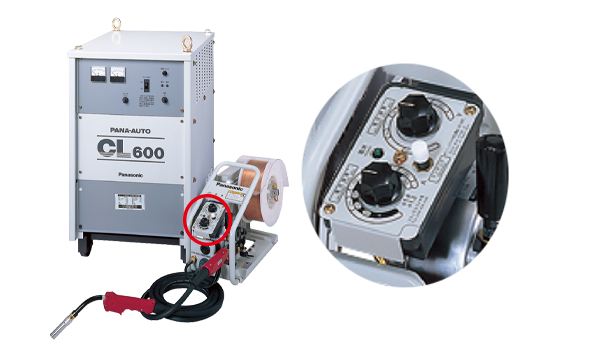

The remote control unit without a cable is integrated into the wire feeder. Condition settings can be performed at users' fingertips, thereby improving work efficiency. An optional 5 m extension cable can be connected to the remote control unit, allowing for operation closer to the user's fingertips.
Significantly improved ease of maintenance
The extension cables are a gas hose with a signal line inside and a cabtyre cable, making maintenance easy. Even if the gas hose with the signal line inside breaks, it can be repaired using the connection fitting (MJN0004). The cables have quick connection joints for easy installation.
Specifications
| Model number | YD-500CL4 | YD-600CL4 | |
|---|---|---|---|
| Rated input voltage | V | 200 to 440 AC (200, 220, 380, 400, 440) | |
| Number of phases, rated frequency | ー | 3-phase, 50/60 Hz | |
| Rated input | kVA | 31.9 | 45 |
| kW | 28.1 | 40 | |
| Maximum open circuit voltage | V | 66 DC | 77 DC |
| Rated duty cycle (10-minute cycle) | % | 60 | 100 |
| Output current adjustment range | A | 60 to 500 DC | 60 to 600 DC |
| Output voltage adjustment range | V | 16 to 45 DC | 16 to 55 DC |
| Applicable welding process | ー | CO₂ / MAG | |
| Applicable shielding gas | 一 | CO₂ : CO₂ 100 % MAG : 80 % Ar and 20 % CO₂ |
|
| Applicable wire diameter | mm | 1.2 / 1.4 | |
| Applicable wire materials | ー | Mild steel/Mild steel FCW | |
| Input power supply terminal | ー | Terminal block (M5 bolt fixing) | Terminal block (M6 bolt fixing) |
| Output terminal | ー | Copper plate terminal (with M8 bolt) | |
| External dimensions (width x depth x height) |
mm | 436 x 675 x 762 | 496 x 690 x 920 |
| Mass | kg | 148 | 220 |
● View the required power supply capacity and cable thickness data
