Inverter CO2/MAG Welding Machine
RX1 Series
Overview
RX1 Series（YD-200RX1 / YD-350RX1 / YD-500RX1）
RX1 Catalog
* In addition to this product (welding power source), a wire feeder, remote control unit, torch, and gas regulator are required for welding.
Key functions
-
Higher level of energy saving performance
-

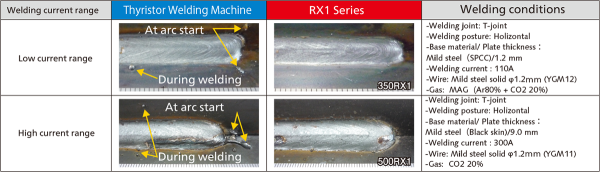

Capable of high-quality welding
-

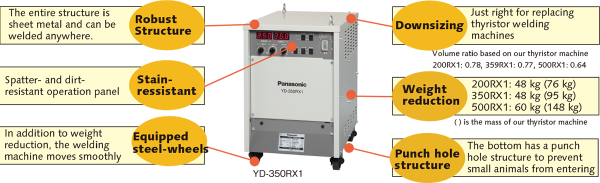

A robust, compact, and lightweight structure allowing simple operation
Issues
Ease of use
A variety of arc characteristics are available as standard. The optimal mode can be selected according to various welding situations.
Operation costs

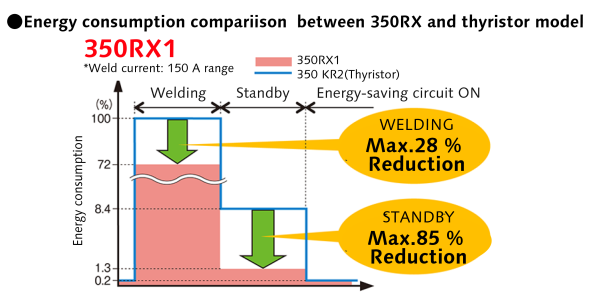

Inverter-based optimal control achieves energy saving during welding and standby.
Degree of freedom for setting changes

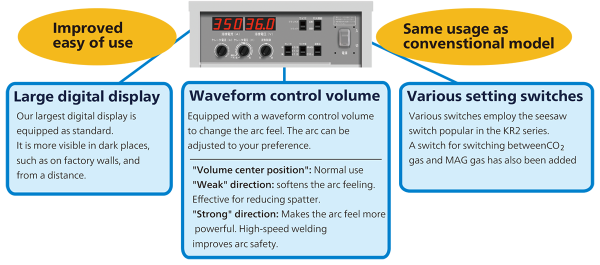

Switches for detailed settings are located on the front panel. Users can finely tune welding settings.
Strengths and Features
Detailed settings can be changed

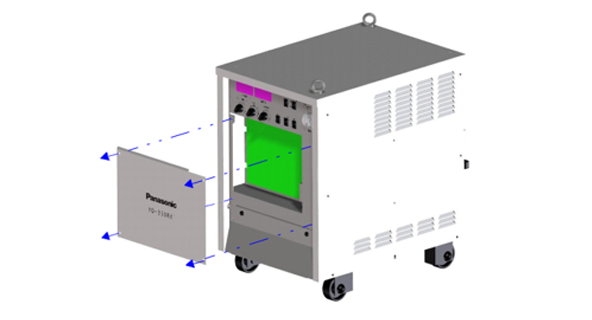

Switches for changing detailed settings are provided on the front panel. Customers can fine-tune the welding settings for their desired conditions.
* Please refer to the instruction manual for how to change settings.
Option List
Specifications
| Welding power source | YD-200RX1 | YD-350RX1 | YD-500RX1 | |
|---|---|---|---|---|
| Rated input voltage | V | 200 AC (allowable fluctuation range：180 to 220) 220 AC (allowable fluctuation range：198 to 242) Selectable using a switch on the rear |
||
| Number of phases, rated frequency | 一 | 3-phase, 50 / 60 Hz (common) | ||
| Rated input voltage | kVA | 6.4 | 15.4 | 27.0 |
| kW | 6.0 | 14.7 | 25.8 | |
| Maximum open circuit voltage | V | 79 DC | 79 DC | 77 DC |
| Rated output current | A | 200 DC | 350 DC | 500 DC |
| Rated output voltage | V | 25 DC | 36 DC | 45 DC |
| Rated duty cycle (10-minute cycle) | % | 50 | 50 | 60 |
| Output current adjustment range | A | 30 to 200 DC | 50 to 350 DC | 60 to 500 DC |
| Output voltage adjustment range | V | 10 to 25 DC | 12 to 36 DC | 16 to 45 DC |
| Control method | ー | IGBT inverter type | ||
| Applicable welding process | ー | CO₂ / MAG | ||
| Waveform control function | ー | Dial setting (low to high) | ||
| Sequence functions | 一 | Main welding, Main welding-Crater, Initial welding-Main welding-Crater*1 | ||
| Applicable shielding gas | 一 | CO₂ (100 ％) MAG (80 % Ar and 20 % CO₂) |
||
| Applicable wire diameter | mm | 0.8 / 0.9 / 1.0 / 1.2 *2 | 0.9 / 1.0 / 1.2 *2 | 1.2 / 1.4 / 1.6 |
| Applicable wire materials | ー | Mild steel, Mild steel FCW | ||
| Pre-flow time | s (seconds) | 0.0 to 5.0 (adjustable in 0.1 increments) | ||
| Post-flow time | s (seconds) | 0.0 to 5.0 (adjustable in 0.1 increments) | ||
| Input power supply terminal | ー | Terminal block (M5 bolt fixing) | ||
| Output terminal | ー | Copper plate terminal (with M8 bolt) | ||
| External dimensions (width x depth x height)*3 | ㎜ | 380 x 530 x 570 | 380 x 530 x 570 | 380 x 530 x 670 |
| Mass | kg | 48 | 48 | 60 |
*1: When using the initial welding function, it is required to configure settings through the detailed menu.
*2: When using mild steel FCW, the wire diameter must be 1.2 mm.
*3: The depth dimension does not include the input power supply terminal cover on the rear panel.
