Vシリーズ

Full Digital CO2/MAG/MIG Welding Machine

VR1 Series

Overview

image alt

VR1 Series（YD-350VR1 / 500VR1）

350VR1 Catalog
* In addition to this product (welding power source), a wire feeder, remote control unit, torch, and gas regulator are required for welding.

Key functions

  • Continuous evolution of low spatter control

  • Optimization over the entire current range

  • Intuitive operation

  • Easy-to-set welding conditions

  • Output of various data to support quality control and frontline management

Issues

Can this model be used for a wide range of applications?

A variety of arc characteristics are available as standard. The optimal mode can be selected according to various welding situations.

Can users master VR1 even if they have little welding experience?

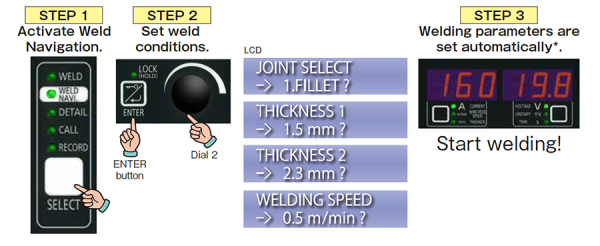

The easy-to-understand display allows intuitive operation. Welding Navigation helps users shorten the time required to determine optimal welding conditions. It is also friendly to those who are not regularly engaged in welding operations.

Is it compatible with the GR3 series?

When you are using the GR3 series, mutual compatibility of ancillary devices is achieved between both series. The wire feeder and torch can be used without any modifications.

Strengths and Features

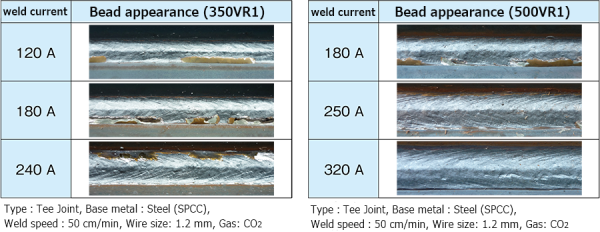

VR1 weld performance

Improved arc tracking characteristics over the entire current range

Full software control of the welding waveform improves arc tracking characteristics. The arc can be controlled as desired, thereby reducing the amount of spatter generated over the entire current range. Since a variety of arc characteristics have been preinstalled as standard, the optimal welding mode can be selected according to various welding situation.

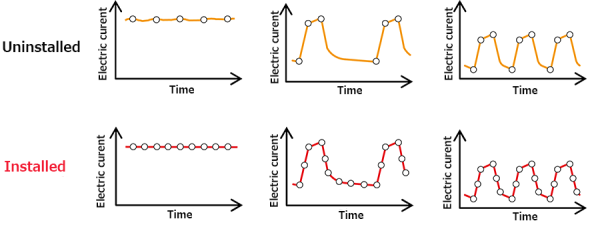

VR1 hybrid reactle function

Optimization of the current waveform over the entire current range by the hybrid electronic reactor.

High-speed control of the welding current waveform has been achieved. Full software control ensures fine control of output over the entire current range from low to high current, thereby facilitating welding operations and reducing the amount of spatter.

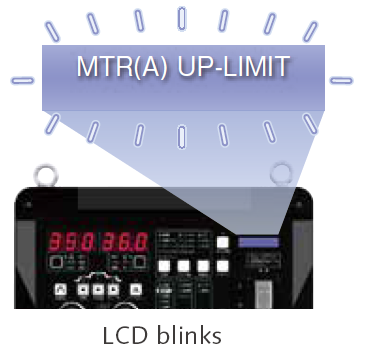

Output management functions

Output management functions support welding quality control and frontline management

Various welding data including the motor current and arc time are output. It is also possible to issue notifications for cases where the preset upper or lower limit is exceeded by blinking the LCD display.

Examples of management functions

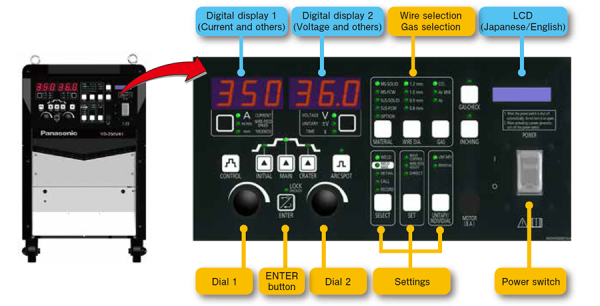

Easy-to-understand display for intuitive operation
