Twin Inverter AC/DC dual use TIG Welding Machine
WX4 series
Overview
WX4 Series（200/300/500）
* In addition to this product (welding power source), a torch and gas regulator are required for welding.Key functions
-
Various types of welding can be performed by switching the welding mode
-

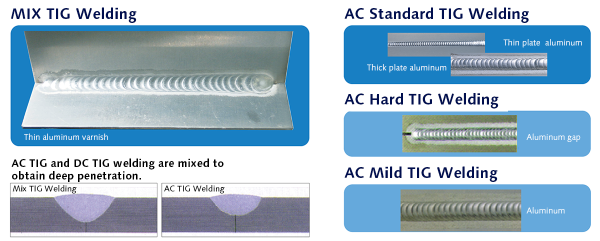

Supports welding of various aluminum base materials by switching the pulse frequency
-

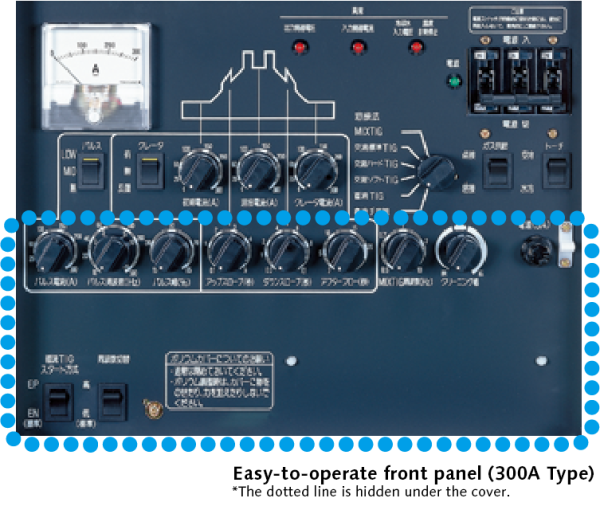

Safe and user-friendly design
-
50/60 Hz common
-
Output of various data to support quality control and frontline management
Issues
High-quality welding
Four welding modes are available for various applications. High-quality welding can be applied to aluminum, mild steel, and stainless steel.
Operating costs
Panasonic's proprietary mix TIG welding has excellent arc convergence, enabling efficient welding. Costs can be reduced by switching the pulse control to perform high-speed welding.
Strengths and Features
The optimal welding mode can be selected according to the application
The WX4 series is a TIG welding machine that can output both AC and DC currents. In addition to switching between high and low currents, it is also possible to perform the original Mix TIG welding that alternately outputs AC and DC currents. Suitable for welding various shapes from thin to thick plates.
Equipped with functions in consideration of on-site work
This product can be used anywhere in Japan (both 50 and 60 Hz supported . In addition, the rated input power voltage can also be switched with a single button. Furthermore, it is equipped with an anomaly detection function. Therefore, even if a problem occurs, it is easy to identify the cause and reduce downtime.
■ Safe and user-friendly design
- The crater control can be switched by selecting On, Off, or Repeated.
- With the function for setting the up-slope time and down-slope time
- With the function for setting the pre-flow time and post-flow time
- With a switch to turn the electric shock prevention function On or Off for DC manual welding (on the PCB)
- With an insufficient water flow detection function (torch protection)
- With terminals for connecting jigs (pulse detection, current detection, emergency stop)
- With an anomaly detection function
Option List
Torches for TIG welding
● Various types with rated currents from 80 to 500 A
(Standard cables with lengths of 4 m and 8 m are available)
Gas regulator
●YX-251A
For argon gas welding

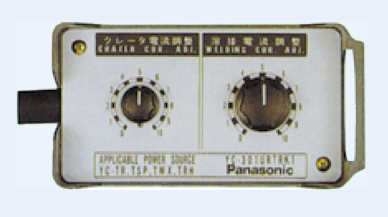

Remote control unit
●YC-301URTRK1
(Supports 200 to 500 A)
* With a 5 m long extension cable
Water-cooling option
Specifications
| Model number | YC-200WX4T00 | YC-300WX4T00 | YC-500WX4T00 | ||
|---|---|---|---|---|---|
| Rated input voltage | V | 200 AC (allowable fluctuation range: 180 to 220) 220 AC (allowable fluctuation range: 198 to 242) Selectable using the switch on the rear of the unit |
|||
| Number of phases, rated frequency | ー | 3-phase, 50/60 Hz (common) | |||
| Rated input | kVA | 9 | 12 | 24 | |
| kW | 7 | 10.5 | 19.5 | ||
| Rated duty cycle (10-minute cycle) | % | 40 | 60 | ||
| DC open circuit voltage | ー | Electric shock prevention function: On: 14, Off: 63 | Electric shock prevention function: On: 14, Off: 75 | ||
| AC open circuit voltage | ー | 63 | 75 | ||
| DC output current | TIG welding | A | 4 to 200 | 4 to 300 | 5 to 500 |
| Manual welding | A | 4 to 200 | 4 to 250 | 50 to 400 | |
| AC output current* | Mix TIG | A | 10 to 200 | 10～300 | 20～500 |
| AC standard TIG | A | 10 to 200 | 10 to 300 | 20 to 500 | |
| AC hard TIG | A | 20 to 200 | 20 to 300 | 20 to 500 | |
| AC soft TIG | A | 10 to 130 | 10 to 200 | 20 to 330 | |
| DC output voltage | TIG welding | V | 16 to 18 | 16 to 20 | 16 to 24 |
| Manual welding | V | 20 to 28 | 20 to 30 | 20 to 36 | |
| AC output voltage | Mix TIG | V | 16 to 19 | 16 to 21 | 16 to 25 |
| AC standard TIG | V | 16 to 20 | 16 to 22 | 16 to 26 | |
| AC hard TIG | V | 16 to 20 | 16 to 22 | 16 to 26 | |
| AC soft TIG | V | 16 to 17 | 16 to 20 | 16 to 22 | |
| Initial/crater current for AC standard/Mix | A | 10 to 200 | 10 to 300 | 20 to 500 | |
| Initial/crater current for AC soft | A | 10 to 130 | 10 to 200 | 20 to 330 | |
| Initial/crater current for AC hard | A | 20 to 200 | 20 to 300 | 20 to 500 | |
| Initial/crater current for DC | A | 4 to 200 | 4 to 300 | 5 to 500 | |
| Initial current control | ー | Available when the crater control is On or Repeated. | |||
| Up-slope time | s (seconds) | 0 or 0.1 to 5 | |||
| Up-slope time | s (seconds) | 0 or 0.2 to 10 | |||
| Gas pre-flow time | s (seconds) | 0.3 | |||
| Gas post-flow time | s (seconds) | 2 to 20 | |||
| Welding process that can adjust the cleaning width | ー | AC standard TIG/AC soft TIG/AC hard TIG/Mix TIG | |||
| Pulse frequency | Middle pulse | Hz | 10 to 500 | ||
| Low pulse | Hz | 0.5 to 25 | |||
| Pulse width | ー | 15 to 85 | |||
| Mix TIG frequency | Hz | 0.5 to 10 | |||
| Crater control | ー | On/Off/Repeated | |||
| External dimensions (width x depth x height) | mm | 380 × 530 × 730 | 440 × 585 × 945 | ||
| Mass | kg | 74 | 113 | ||
* Please select the appropriate conditions to ensure a stable arc condition in the low current range.
● View the required power supply capacity and cable thickness data
