Problem: Need Stability for TIG Welding
Problem: Need Stability for TIG Welding
Compared to semi-automatic welding, TIG welding requires more skill because changes in the distance between the tungsten tip and base metal have a significant impact on welding results (bead width and penetration). In addition, ensuring welding quality has become an issue at many worksites in recent years due to a decrease in the number of skilled personnel.
Problems faced by customers
■Bead width is not stable.
■Burn-through occurs frequently.
■Difficult to recruit welding personnel.

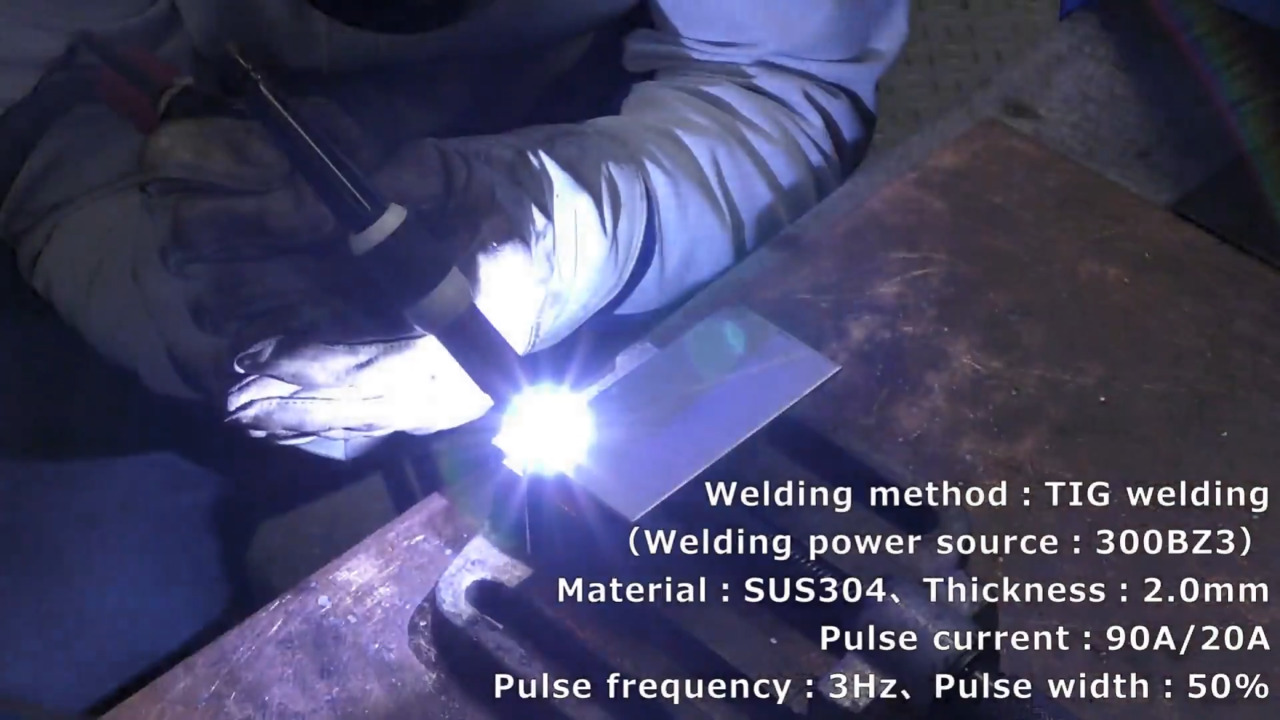

Manual welded workpiece (Click to enlarge)
Welding method: DC TIG welding (Welding power source: 300BZ3)
Base metal: SUS304, Plate thickness: 2.0 mm
Pulse current: 90 A/20 A, Pulse frequency: 3 Hz, Pulse width: 50%
Solution：Introduce Welding Robot System
・Robots can perform high-quality, uniform and stable welding without the shaking that occurs with human hands. High-speed welding is also possible by optimizing conditions.
・High-speed welding is also possible by optimizing conditions.

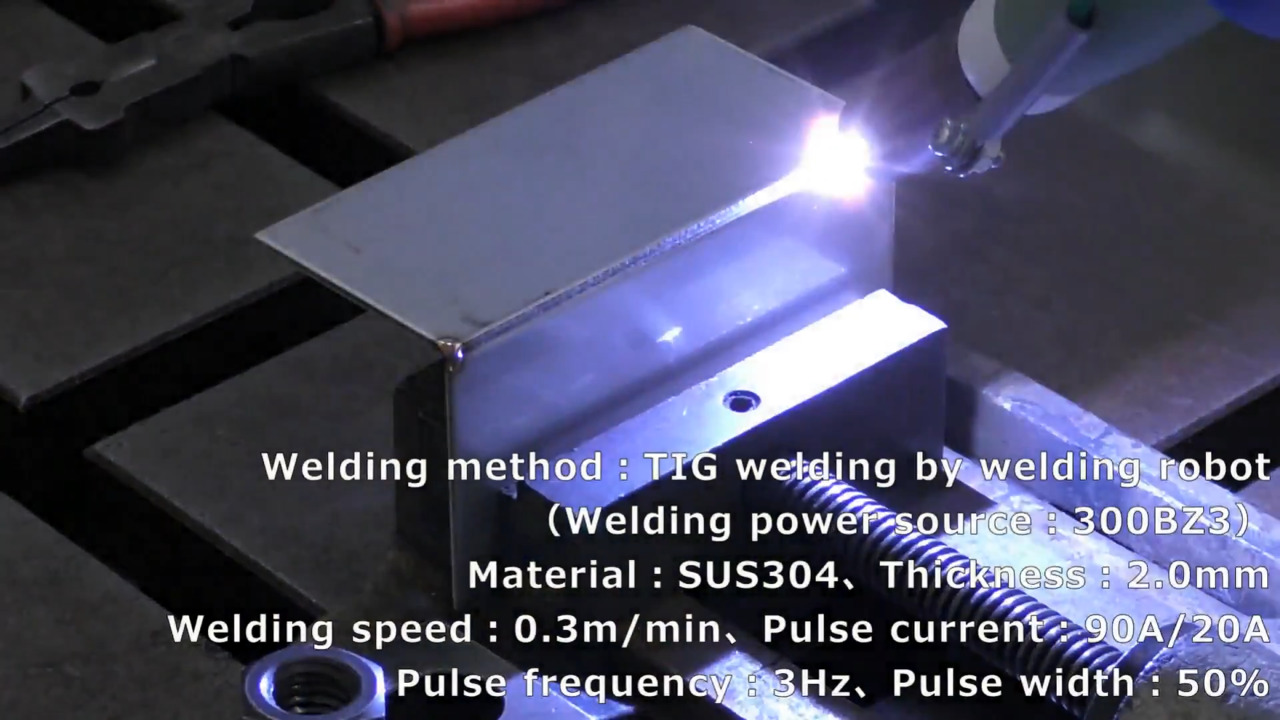

Result : Excellent Appearance and Stable Quality by Robot Welding
